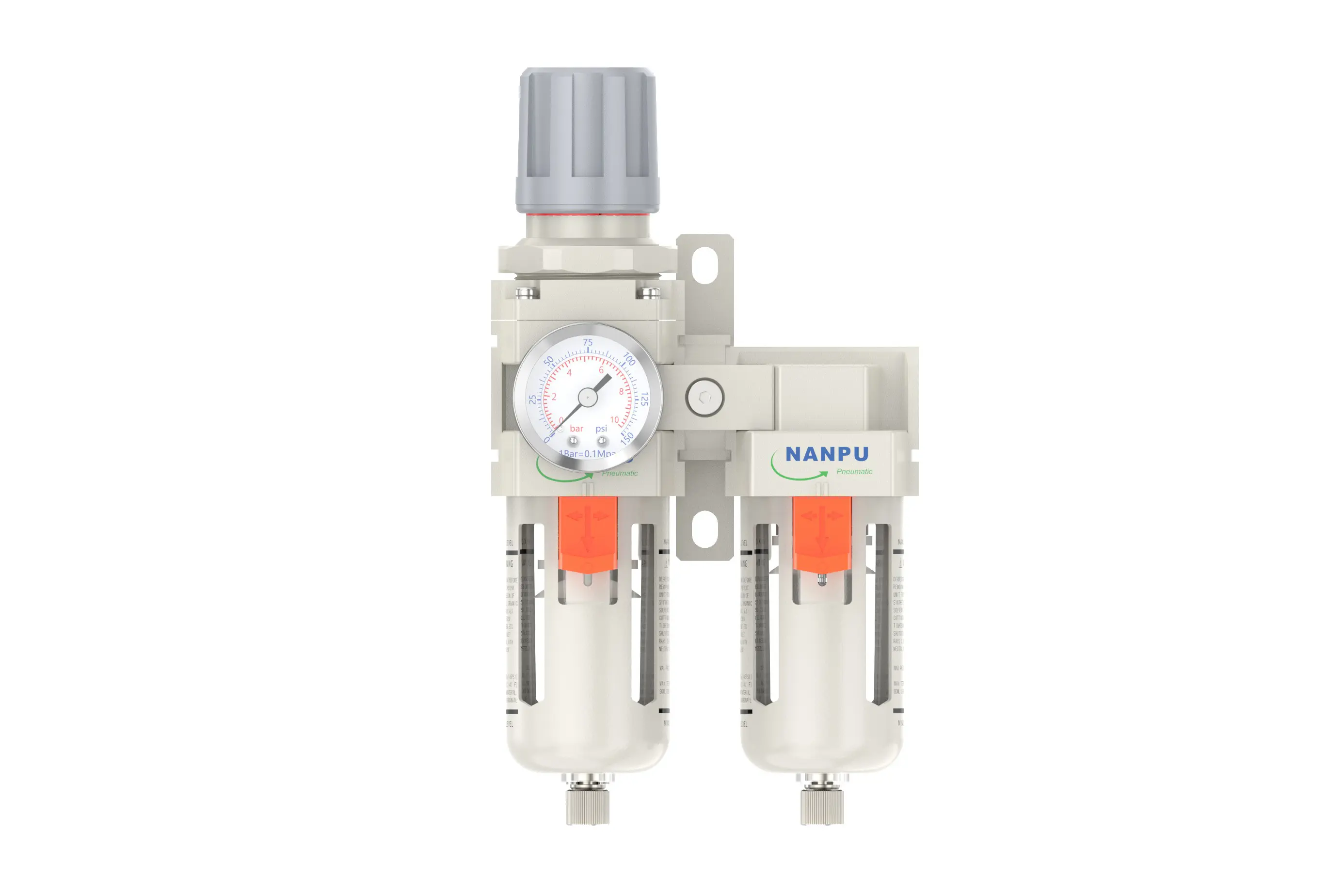

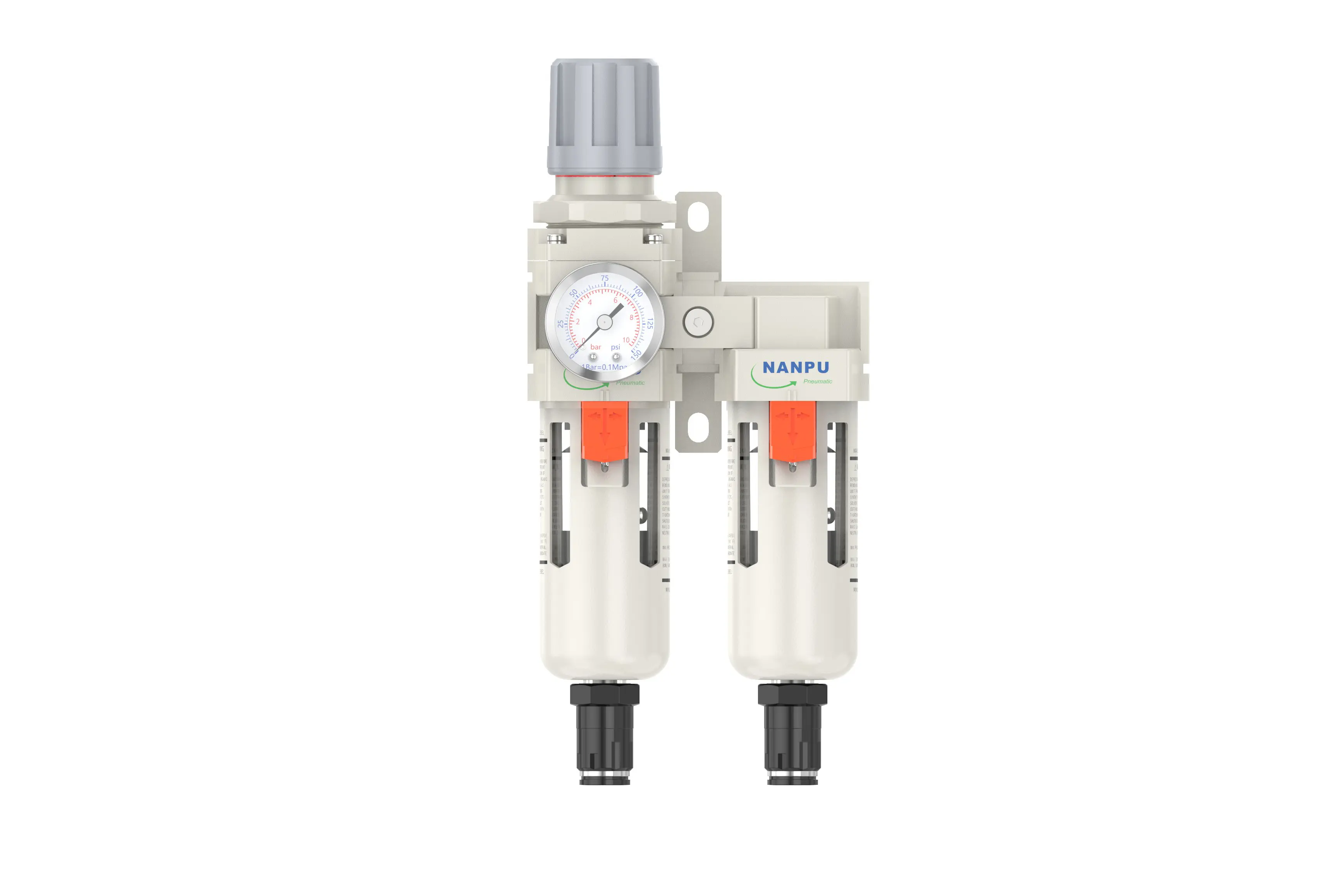

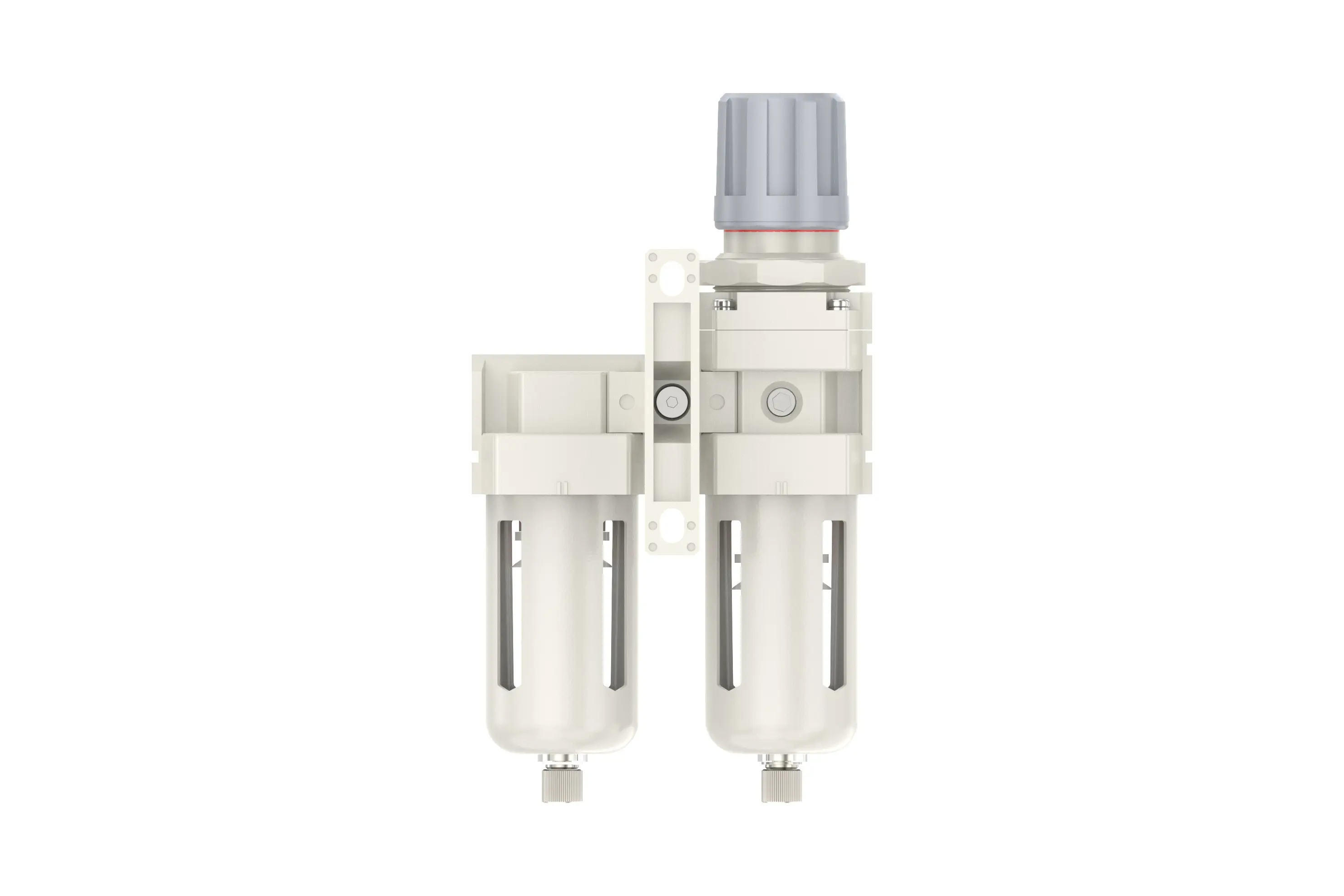

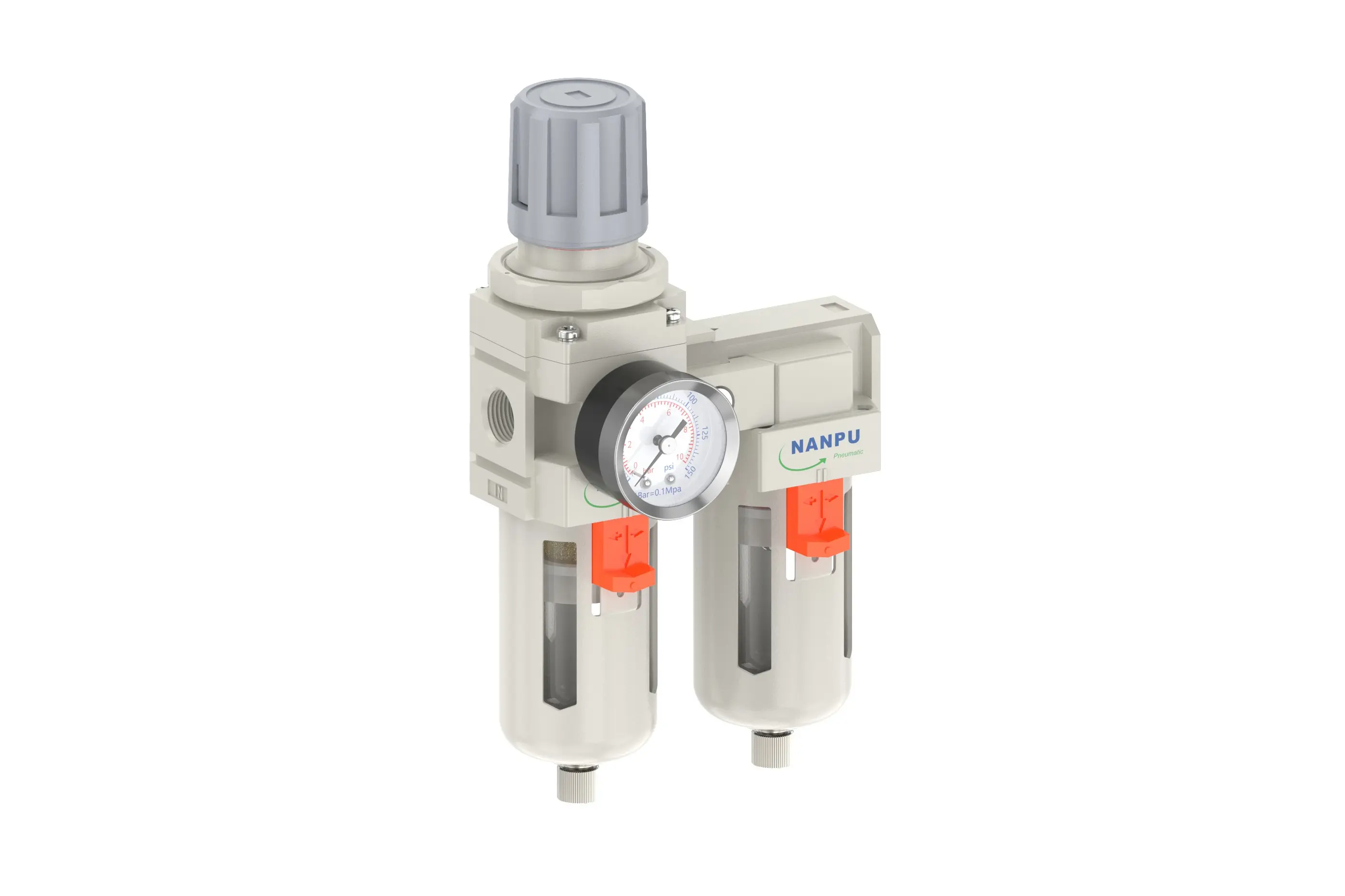

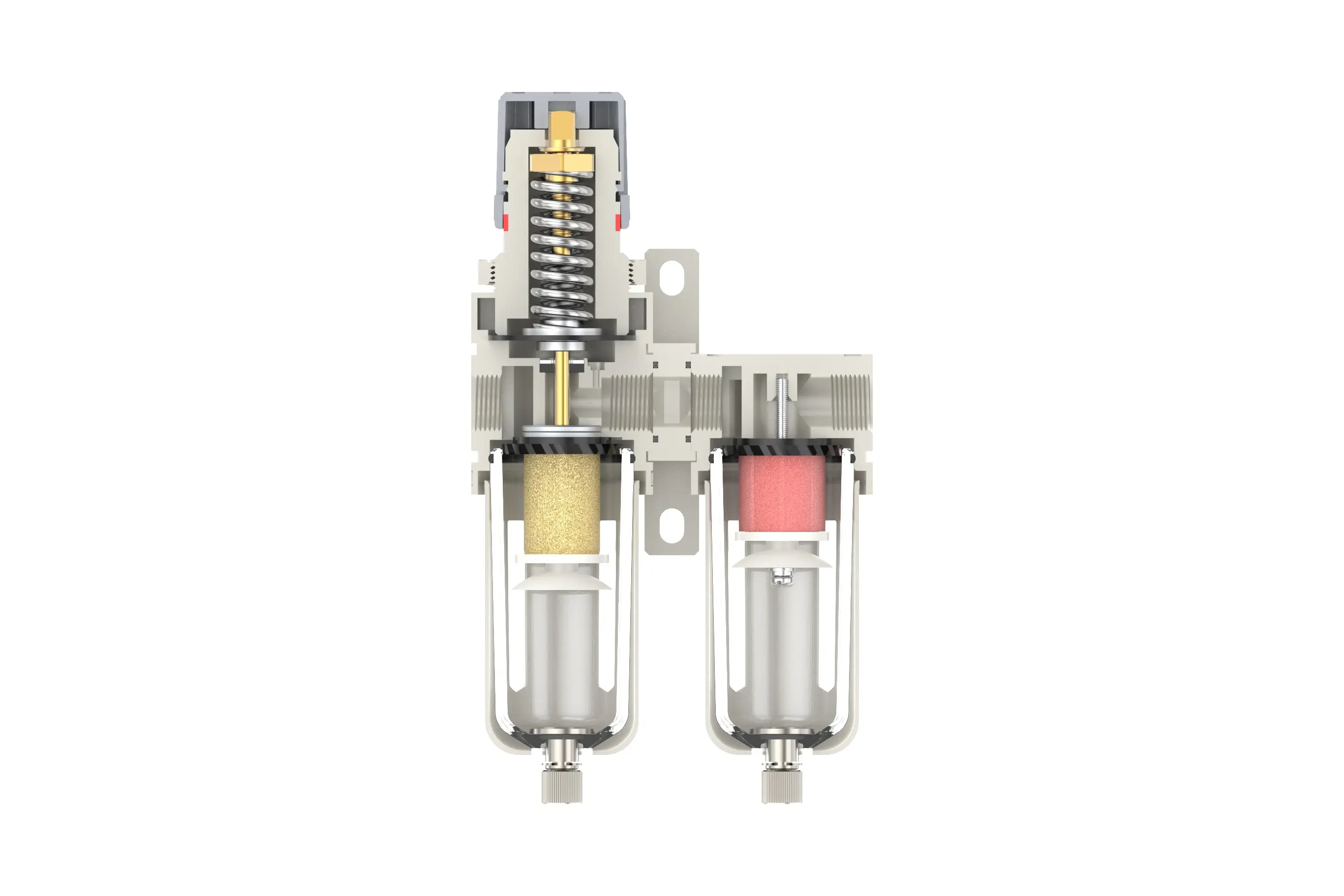

AWF3010-03/AWF4010-04/AWF4010-06 3/8" 1/2" 3/4" AWFF Air Drying System Manual Drain&Auto Drain
description1
AWF3010-03/AWF4010-04/AWF4010-06
Manual Drain AWF3010-03/AWF4010-04/AWF4010-06 3/8" 1/2" 3/4"
Auto Drain AWF3010-03D/AWF4010-04D/AWF4010-06D 3/8" 1/2" 3/4"
NANPUAWF3010-03/AWF4010-04/AWF4010-06 3/8" 1/2" 3/4"
| AWF | 2010 | 02 | BSP | D |
| Series Number | Body Size | Port Size | Thread Type | Drainage Method |
| 2000 | 02：1/4" | BSP | Blank: Differential Pressure Drain | |
| 3000 | 03：3/8" | NPT | A: Manual Drain | |
| 4000 | 04：1/2" | PT | D: Auto Drain | |
| 4000/5000 | 06: 3/4" | |||
| 5000 | 10: 1" |
NANPUTechnical Specifications
| Model | Model | |
| Manual Drain | Auto Drain | (L/min）Rated Flow Rate |
| AWF2010-02 | AWF2010-02D | 500 |
| AWF3010-02 | AWF3010-02D | 2000 |
| AWF3010-03 | AWF3010-03D | 2000 |
| AWF4010-04 | AWF4010-04D | 4000 |
| AWF4010-06 | AWF4010-06D | 4500 |
| AWF5010-06 | AWF5010-06D | 5000 |
| AWF5010-10 | AWF5010-10D | 5000 |
| Max Input Pressure | 1.2Mpa{12.24kgf/cm²} /174.04Psi |
| Max Operating Pressure | 1.0Mpa{10.2kgf/cm²} /145Psi |
| Temperature Range | 5~60℃ |
| Filtration Accuracy | 0.01μm, 5μm, 40μm |
| Bowl Material | Polycarbonate |
| Bowl Guard | AC2000(None) AC3000~5000(YES) |
| Pressure Range | AC2000~5000/0.05~0.85Mpa（0.51~8.7kgf/cm² )/0~125Psi |
1. Preparation
Every calibration assembly must adhere to the maximum flow rate criteria.
Before installation, thoroughly scrub the ports and connectors to stop dust from entering the air channel.
Check that the airflow direction corresponds with the arrow signs on the product casing, and make sure that the port and thread sizes are correctly coordinated.
2. Pressure Adjustment
Withdraw the pressure gauge knob and start turning. Rotating it clockwise will bring about a steady and uniform rise in pressure, whereas rotating it counterclockwise will cause a reduction. When the designated pressure level is reached, stop turning and firmly tighten the knob. Not carrying out this locking step might lead to possible leakage problems.
3. Dial Reading
5 Micron Brass Filter Component: Shows excellent filtering effectiveness, provides a long - term service duration, and is built for multiple uses.
0.5 and 0.01 Micron Filter Components: Can effectively remove tiny contaminants from the substance.
The drainage column functions in an automatic way. It unlocks to expel when there is no pressure and seals when air passes through. Once the water level goes beyond the maximum mark, prompt drainage is necessary; neglecting this will result in poor dehumidification results.
4. Drainage
The drainage column is designed for autonomous operation. It will activate to release contents when pressure is lacking and shut when air flows. When the water level surpasses the set maximum, immediate draining is essential; not doing so will lead to diminished dehumidification efficiency. The connector on the drain assembly is meant for attaching an air hose and can be removed according to particular operating needs.
Use a spanner to firmly fasten all connectors to avoid seepage. While installing for the first time, air may escape. This is not a leak; instead, it’s caused by the difference in internal and external pressures, requiring the release of surplus air. In these cases, give enough time for the system to stabilize, after which it will operate smoothly.
