TC/2010-02/3010-03/4010-04 Series F.R.L.Combination Air Filter, Regulator & Lubricator

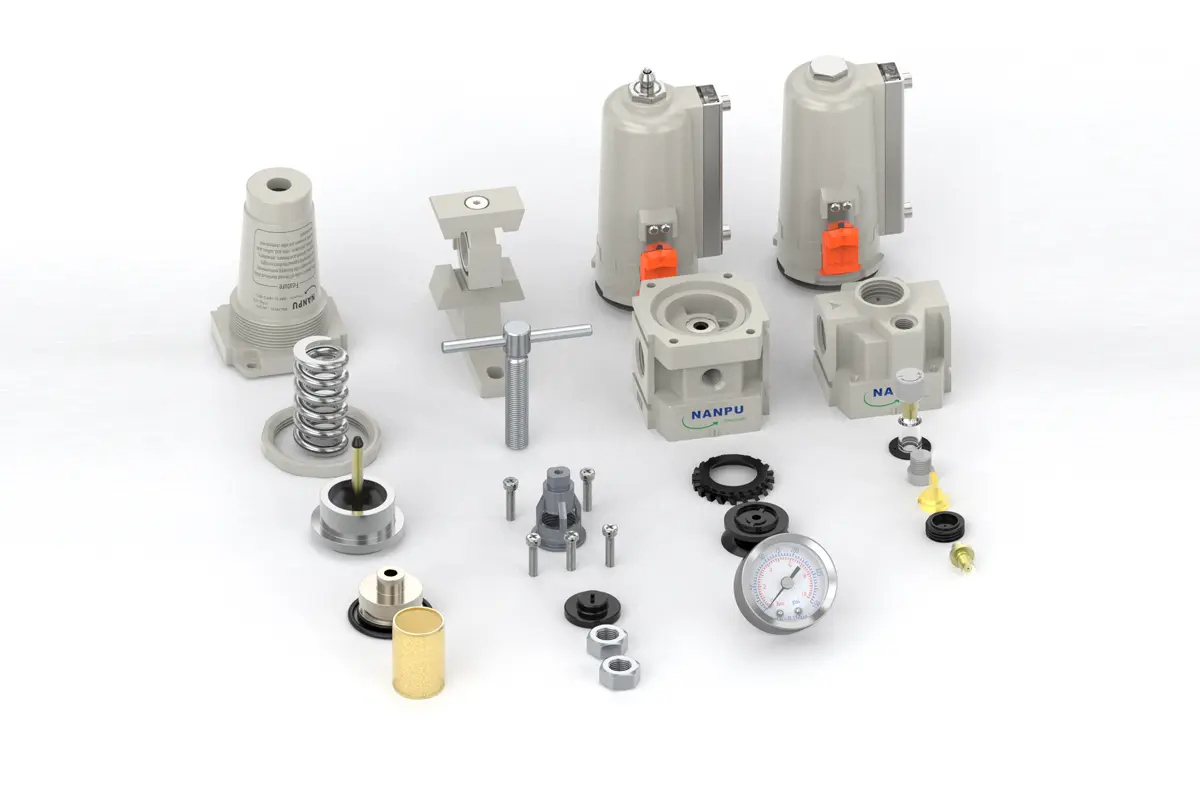

The Filter, Regulator, and Lubricator (FRL) assembly forms a tripartite system. The filter is elaborately engineered to expunge the majority of liquid and solid contaminants from the compressed air stream. The pressure-modulating regulator functions to precisely control the outlet pressure. The lubricator, concurrently, administers lubricant to pneumatic tools, thereby notably extending their operational longevity.

    Contact us
    product details

    description1

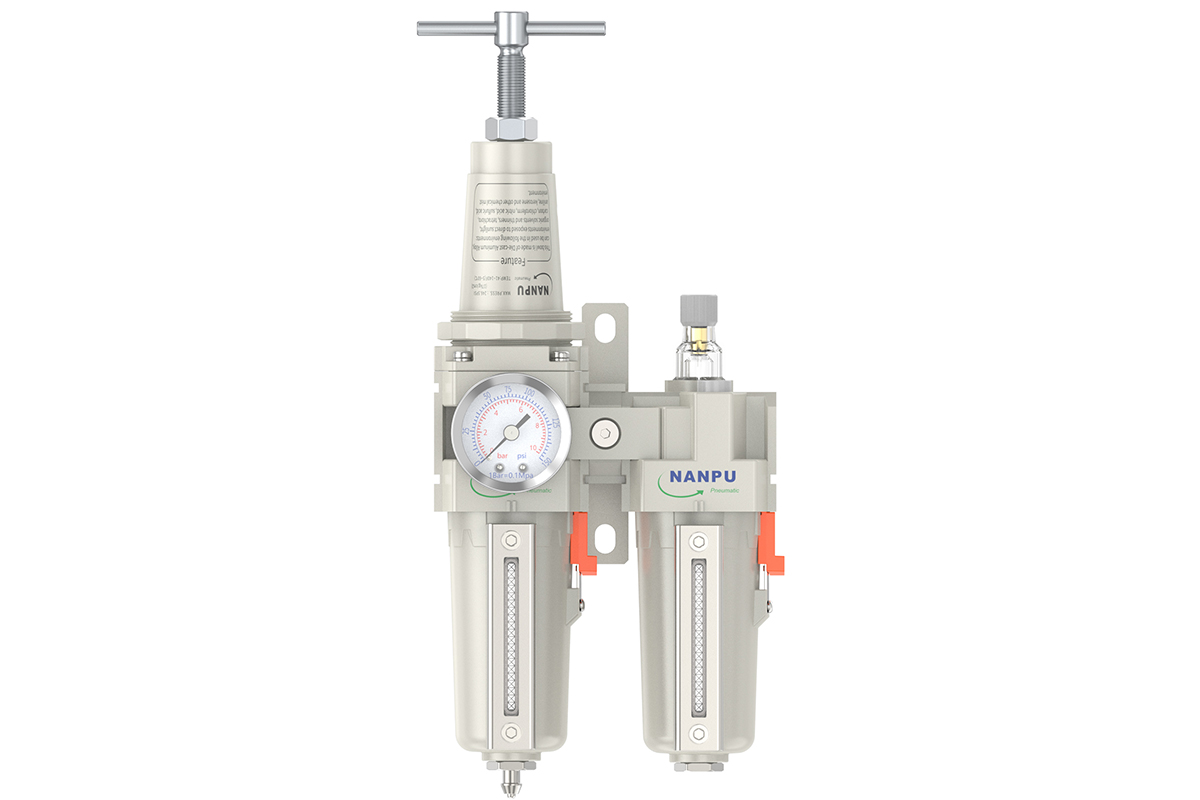

    1200X800 1

    TC3010-02/03 TC4010-04/06 Series F.R.L.Combination Air Filter, Regulator & Lubricator

    Manual Drain TC3010-02/03 TC4010-04/06 Series F.R.L.Combination Air Filter, Regulator & Lubricator
    Auto Drain TC3010-02/03-D TC4010-04/06-D Series F.R.L.Combination Air Filter, Regulator & Lubricator

    NANPU
    TC/2010-02/3010-03/4010-04 Series F.R.L.Combination Air Filter, Regulator & Lubricator

    1200X800 2
    TC  3010 MINI BSP D
    Series Number Port Size   Thread Type Drainage Method
      3010 02:1/4"   03:3/8" BSP Blank: Differential Pressure Drain
      4010 04:1/2"   06:3/4" NPT A: Manual Drain
          PT D: Auto Drain

    NANPUTechnical Specifications

    Technical Specifications
    Max Input Pressure 2.0Mpa{20.39kgf/cm²} 290Psi
    Max Operating Pressure 1.8Mpa{18.35kgf/cm²} 261Psi
    Temperature Range  5~60℃
    Filtration Accuracy 5μm、40μm
    Body Material Aluminium/Zinc
    Bowl Guard YES
    Suggested Oil Turbine Oil No. 1 ISO-VG32
    Pressure Range TC3000~4000:0.05~1.8Mpa（0.51~18.35kgf）


    Model Model
    Manual Drain Auto Drain (L/min）Rated Flow Rate
    TC3010-02 TC3010-02-D 2000
    TC3010-03 TC3010-03-D 2000
    TC4010-04 TC4010-04-D 4000
    TC4010-06 TC4010-06-D 4500


    Product Benefits
    All Portsize Piggyback Air Filter featuring a standard 5-micron filtration element, along with an integrated Regulator and Lubricator (FRL) assembly.
    This system is designed to provide dry air, with capabilities for precise pressure regulation and effective air lubrication.
    The operational temperature range is specified as 41 to 140 degrees Fahrenheit (equivalent to 5 to 60 degrees Celsius).


    NANPUInstallation and Operating

    1200X800 3

    Preparation

    All calibration assemblies must comply with maximum flow specifications.

    Prior to installation, rigorously purify all ports and fittings to effectively prevent dust ingress into the air passage.

    Confirm that the air flow direction corresponds with the arrow markings on the product body and ensure precise alignment of port and thread dimensions.

    2. Pressure AdjustmentElevate the pressure gauge knob and initiate rotation. A clockwise turn will effect a steady, uniform pressure increase, while a counterclockwise turn will precipitate a pressure reduction.

    Upon reaching the target pressure value, halt rotation and firmly depress the knob to lock it in place. Neglecting this securing procedure may result in pressure leakage complications.

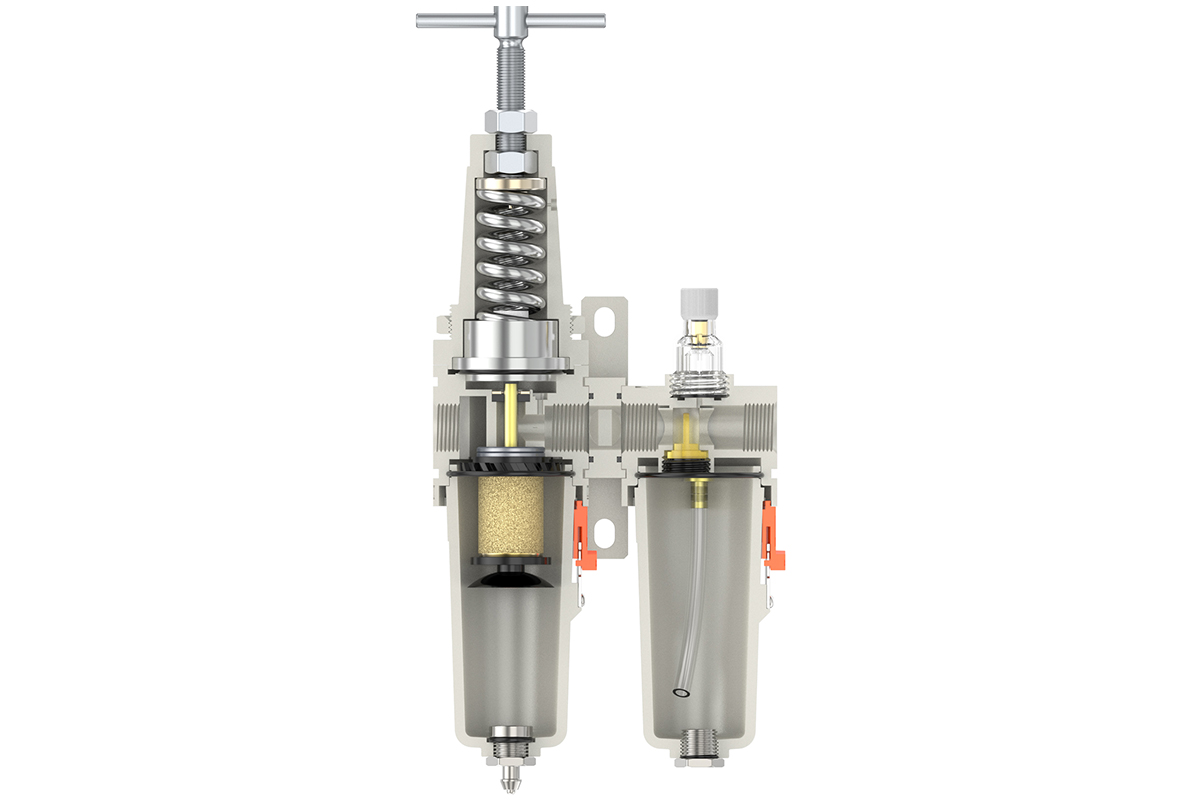

    1200X800 4
    Pressure Adjustment and Drainage

    3. Dial Reading
    Ensure the pressure gauge is securely mounted to the main assembly. During pressure adjustment, meticulously monitor the gauge to verify that the readings exhibit consistent and unobstructed fluctuations.


    4.Drainage
    The drainage column functions in a self-actuating mode, opening to expel condensate when pressure is absent and closing during airflow. Should the water level surpass the upper threshold, immediate drainage is mandatory; noncompliance will lead to impaired dehumidification efficacy. The fitting on the drain head is engineered for air hose connection and may be detached in accordance with specific operational needs.

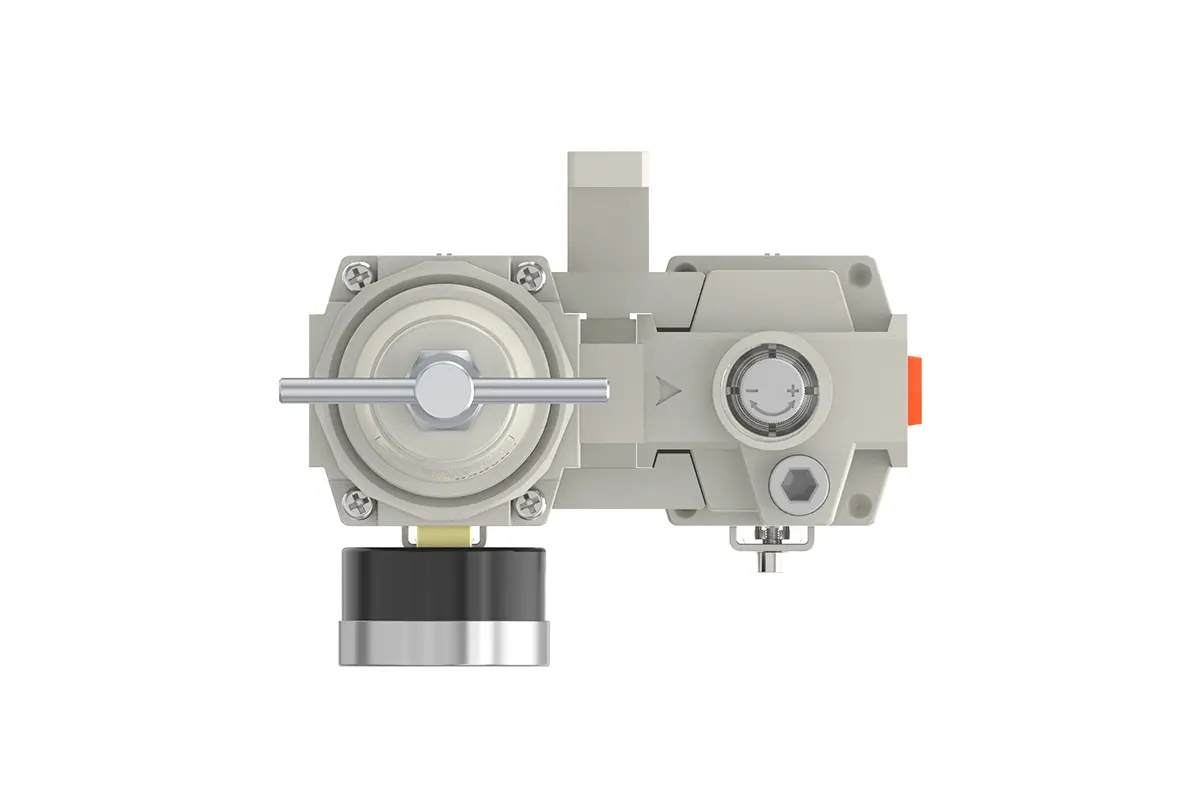

    1200X800 5
    Oil Adjustment and Refueling

    5.Oil Adjustment
    Rotate the needle valve clockwise (in the "+" direction) to enhance the oil suction rate. Conversely, rotating the needle valve counterclockwise (in the "-" direction) will retard or terminate the oil suction process.
    6.Refueling
    Rotate the oil-filling screw clockwise, ensuring the oil volume does not exceed 80% of the bowl's capacity. Upon completion of refueling, firmly fasten the oil-filling screw.
